ROLLER GUIDING
POSITIVE OPENING
1/2 1/1 V WEAVE

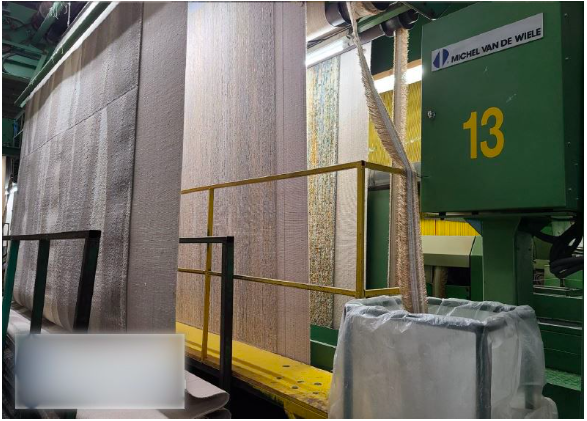

FOLDING SYSTEM TO TAKE UP CARPETS
2 ROUND STONES & 2 FLAT STONES

HIGH BEAM STAND FOR 8 BEAMS
MAXIMUM BEAM DIAMETER 1250 MM
BEAM LET-OFF SYSTEM MOTOR DRIVEN
ADJUSTMENT TENSION WITH WEIGHTS

1 REED
CARPET DENSITY 315 d/m
CARPET WIDTH 4000 mm
PITCH IN PILE PART 1260 / 4020
WIDTH OF SELVEDGE 2 x 50 mm

2 PREWINDERS
1 WITH 2 PLATFORM OF 4 BOBBINS EACH

2 PTX ELECTRONIC HEAD
12600 SOLENOIDS
1/2 V WEAVE STRUCTURE INCORPORATED
1 ELECTRONIC CONTROLLER
CARDAN DOUBLE SIDED DRIVE

10 COLORS
12600 CORDS
STANDARD SPRINGS
1080 R HEALD EYELET
DRIVE OF FRAMES FROM BOTTOM
HEALD LENGTH 740 mm 380 R
6 FRAMES
GROUND WEAVE STRUCTURE 2 X (1/1) + 4 X (2/2)

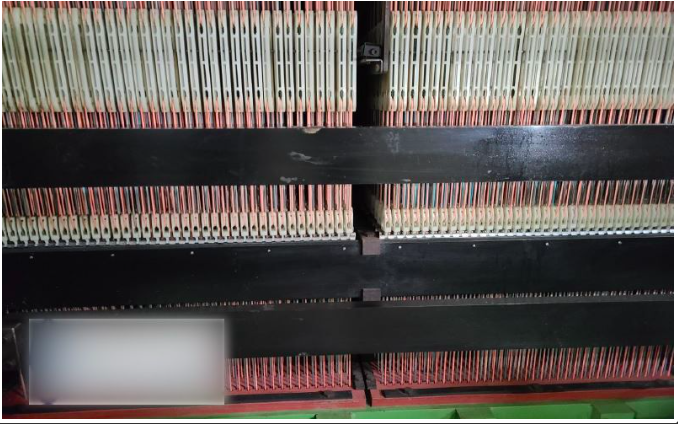

1 WITH 12600 DROP WIRES
WARP STOP MOTION 1 FOR TOP & 1 FOR BOTTOM
